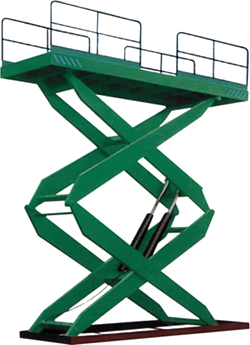

Double scissor Lift Platform


Production introduction:
Stationary hydraulic lift goods ladder is a professional hydraulic lift table for transporting goods among layers of constructions. It is mainly used to carry goods between various working layers; auto lifting between layer heights of three-dimensional garage and underground garage, etc. Hydraulic system of our products is set safety protection equipment to fall protect and overload, and it also can realize multiple-point control, for both floor and the table-board of lift table can set operation buttons. Besides, its solid structure, heavy load, stable lifting as well as simple and convenient installation and maintenance, it is the ideal goods transportation equipment which can substitute elevator between floors with low cost.

Add:1.Choose different collocations according to various installation environment and use requirements of lift tables to receive better effect.
2.Stationary style hydraulic lift goods ladder is suitable for being installed and used in the open air under various conditions. It can be fixed in sealed wells or open floors as well as concave shape ground holes or flat ground in accordance with use requirements.
3.Because of different height, dimension, weight and other use requirements of constructions or working layers, its models have many uncertain factors. When these models in the list is unsuitable for use requirements, we can carry out combination to lifting, load, platform area and other parameters of lift tables according to practice use environment and operation requirements in order to acquire ideal effect.
4.Can choose different collocations, which can produce various use effects. Choose proper collocations, in accordance with installation environments of lift tables as well as self-requirements on use, can gain better use effects.



Model

rating load

least height

lifting journey

most height

table-board dimension

lifting time

voltage

Weight

power

kg

mm

mm

mm

(mm)

(s)

v

kg

(kw)

Double scissor

SJG 1-2

1000

500

2000

2500

2000*1500

28

380v/50hz

750

2.2

SJG 2-2

2000

520

2000

2520

2000*1500

30

380v/50hz

850

2.2

SJG 3-2

3000

520

2000

2520

2000*1500

32

380v/50hz

950

3.0

SJG 4-2

4000

600

2000

2600

2000*1500

35

380v/50hz

1200

4.0
