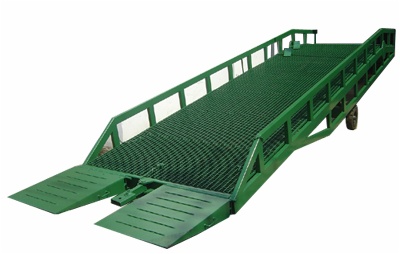

| Container loading ramp |
|
| |
|
|
| |
|
Production introduction:
◇ Completely hydraulic drive, convenient operation and reliable function
◇ platform and lip board adopt hinges with long axis, high intensity, fine credibility
◇ Imported sealed components make sure that hydraulic system has excellent seal capability.
◇ Imported whole module style hydraulic station, good seal capability and long life
◇ Design of "U"shape girder with high intensity guarantees that high load function doesn't distortafter long-playing running.
◇ Adopt non-slipping flower pattern steel board to make platform has good antiskid performance.
◇ Set roll-protection foot skirt board both on two sides to prevent toes extending to platform and cause accidents.
◇ Set security knighthead to protect maintainers when they are in dock ramps.
|
| |
|

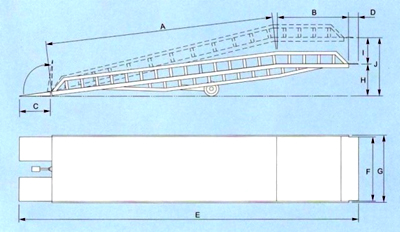

Model |
Rating |
Table size (m) |
High |
load |
A |
B |
C |
D |
E |
F |
G |
H |
DCQY 6-0.8 |
6ton |
7 |
2.2 |
1 |
0.3 |
10.5 |
2 |
2.1 |
1 |
DCQY 10-0.8 |
10ton |
7.5 |
2.4 |
1 |
0.3 |
11.2 |
2 |
2.1 |
1 |
DCQY 15-0.8 |
15ton |
8 |
2.4 |
1 |
0.3 |
11.2 |
2 |
2.1 |
1 |
DCQY 30-0.8 |
30ton |
8.5 |
2.4 |
1 |
0.3 |
11.2 |
2 |
2.1 |
1 |
|
Container loading ramp
