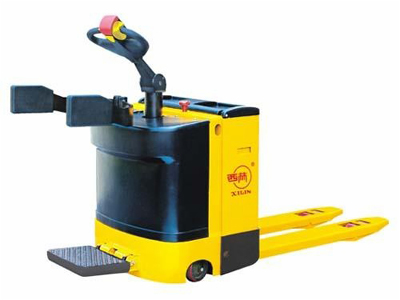

Electric pallet truck CBD20M


Advantages:
Ideal for long distance and horizontal distribution:pedestrian controlled or with driver platform.
Safety reversing device reduces the chance of operator injury.
Low profile design provides excellent visibility.
Auto-Brake control providing automatic braking on releasing drive switch.
MOSFET controller with electric throttle.

Main specifications:



MODEL

CBD20M

Capacity

Q(kg)

2000

Load centre distance

c(mm)

600

Service weight (with battery)

kg

500

Max. lift

h3(mm)

120

Lowered height

h13(mm)

85

Wheelbase fork height

y(mm)

1268

Tread, rear

b11(mm)

340/370/470/505

Overall length

l1(mm)

1872

Fork dimensions

s/e/l(mm)

48x180x1150

Distance between fork-arms

b5(mm)

520/550/650/685

Aisle width for pallets 1000x1200 crossways

Ast(mm)

2811/2861/2931

Aisle width for pallets 800x1200 lengthways

Ast(mm)

2755/2805/2875

Turning radius

Wa(mm)

1970/2020/2090

Travel speed,laden/unladen

Km/h

4.5/6.2

Max.gradeability,laden/unladen

%

5/12

Drive motor rating S2 60 min

kW

0.9

Battery voltage,nominal capacity K5

V/Ah

24/200

Battery weight

kg

120

Battery dimensions l/w/h

mm

250x190x295
