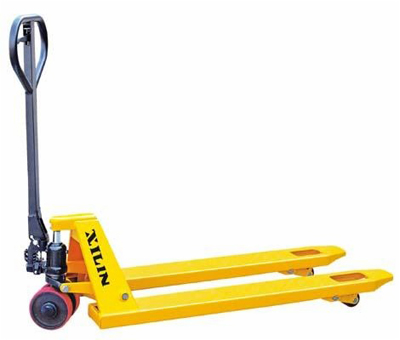

Pallet Truck DB 2.0T


Features:
·Standard epoxy powder coat finish which is resistant to chips and normal corrosion.
·Exceptionally strong but light weight steel construction, self weight is only 55kgs.
·With welded joints and reinforced fork tips for most durability in the toughest of applications.
·3 position control lever Lifting-Neutral-Lowering handle.
·Excellent turning angle of 190 degrees facilities.
·Number of pump strokes 12 times, lift height per stroke 11mm.
·Reliable oil leak-proof hydraulic system.
·Remark: Special size for width and length can be made according to customer's requirement.

Main specifications:



Model

DB

Capacity

Q(kg)

2000

Service weight

kg

55-60

Steering wheel

mm

φ160

Fork wheel

mm

φ70

Max. lift height

h3(mm)

115

Total height

h14(mm)

1160

Lowered fork height

h13(mm)

75

Overall length

l1(mm)

1520/1590

Fork dimensions

s/e/l

53/150/1150(1220)

Distance between fork-arms

b5(mm)

520/550/680

Ground clearance,centre of wheelbase

m2(mm)

22

Aisle width for pallets 1000x1200 crossways

Ast(mm)

1720/1790

Aisle width for pallets 800x1200 lengthways

Ast(mm)

1770/1790

Turning radius

Wa(mm)

1265/1335
