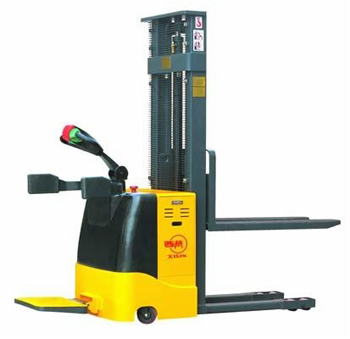

| Electric Stacker CDD10HZ |
|
|
| |
|
Advantages:
·Power driven (Self-propelled).
·With the latest ergonomic design .
·Exceptional maneuverable and load carrying performance,combined with effortless lift and travel.
·Electro-magnetic braking by interruption of electric circuit. permanent stop when tiller is placed within 20°of vertical or in horizontal position.
·MOSFET controller with electric throttle.
·Remark:Model CDDH series with pedal & guard ring.
·Remark:CDDHZ series with with full free lift mast.
|
Main specifications: |
|
Model |
|
CDD10HZ |
CDD15HZ |
Capacity |
Q(Kg) |
1000 |
1500 |
Load centre distance |
c(mm) |
500 |
500 |
Load distance,centre of drive axle to fork |
x(mm) |
740 |
740 |
Wheelbase |
y(mm) |
1355 |
1330 |
Service weight |
kg |
960 |
950 |
Axle loading,laden front/rear |
kg |
953/1007 |
1191/1259 |
Axle loading,unladen front/rear |
kg |
737/223 |
730/220 |
Tyres material |
|
polyurethane |
polyurethane |
Tyre size,front |
|
φ250×80 |
φ250×80 |
Tyre size rear |
|
φ98×82 |
φ98×82 |
Additional wheels(dimensions) |
|
φ150×60 |
φ150×60 |
Wheels,number front rear(x=driven wheels) |
|
1x+2/4 |
1x+2/4 |
Tread,front |
b10(mm) |
636 |
636 |
Tread,rear |
b11(mm) |
410/525 |
410/525 |
Height,mast lowered |
h1(mm) |
1837/2087/2237/2337 |
1837/2087/2237/2337 |
Free lift |
h2(mm) |
1290/1540/1690/1790 |
1290/1540/1690/1790 |
Max. lift height |
h3(mm) |
2500/3000/3300/3500 |
2500/3000/3300/3500 |
Height,mast extended |
h4(mm) |
3087/3587/3887/4087 |
3087/3587/3887/4087 |
Lowered fork height |
h13(mm) |
90 |
90 |
Overall length |
l1(mm) |
1985 |
1985 |
Length to face of forks |
l2(mm) |
820 |
820 |
Overall width |
b1(mm) |
790 |
790 |
Fork dimensions |
s/e/l(mm) |
60/170/1070(1150) |
60/170/1070(1150) |
Distance between fork-arms |
b5(mm) |
580/695 |
580/695 |
Aisle width for pallets 1000x1200 crossways |
Ast(mm) |
2615 |
2615 |
Aisle width for pallets 800x1200 lengthways |
Ast(mm) |
2570 |
2570 |
Turning radius |
Wa(mm) |
1760 |
1760 |
Travel speed,laden/unladen |
Km/h |
4.2/5.6 |
4.2/5.6 |
Lift speed,laden/unladen |
m/s |
0.08/0.1 |
0.08/0.1 |
Lowering speed,laden/unladen |
m/s |
0.15/0.12 |
0.15/0.12 |
Gradeability,laden/unladen |
% |
6/10 |
6/10 |
Service brake |
|
electromagnetic braking system |
Drive motor rating S2 60 min |
kW |
0.75 |
0.75 |
Lift motor rating at S3 15% |
kW |
2.2 |
2.2 |
Battery voltage,nominal capacity K5 |
V/Ah |
24/200 |
24/200 |
Battery weight |
kg |
200 |
200 |
Battery dimensions l/w/h |
mm |
675x254x500 |
675x254x500 |
Sound level at the driver's ear acc.to DIN 12053 |
dB(A) |
70 |
70 |
|
| |
