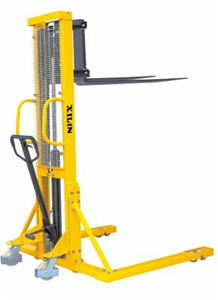

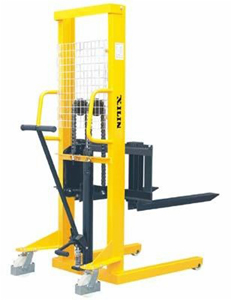

Manual stacker SDJAS500


Advantages:
·Robust Steel profile construction.
·An economical lift to handle tasks from transporting dies and moulds skids and pallets.
·Sturdy and compact enough to fit through standard doors and to operate in congested areas.
·Precision engineered for smooth performance and exceptional durability.
·Lifting function operated by foot and hand controls.
·Allow the operator to work without having to perform extreme body movements.
·SDJAS with adjustable forks & straddle legs

Main specifications:



Model



SDJAS500

SDJAS1000

Load capacity/rated load

Q(kg)

500

1000

Load centre distance

c(mm)

400/500

400/500

Service weight

kg

217

336

Height, mast lowered

h1(mm)

2000

2050

Max. lift height

h3(mm)

1600

1600

Height, mast extended

h4(mm)

2100

2155

Lowered fork height

h13(mm)

65

65

Overall length

l1(mm)

1340/1600

1300/1560

Overall width

b1(mm)

1500

1450

Fork dimensions

s/e/l(mm)

48/100/800.1060

30/100/800.1060

Distance between fork-arms

b5(mm)

745

950

Round clearance, laden,below mast

m1(mm)

25

25

Aisle width for pallets 1000x1200 crossways

Ast(mm)

1540/1800

1500/2100

Aisle width for pallets 800x1200 lengthways

Ast(mm)

1584/1850

1542/2158

Turning radius

Wa(mm)

1200

1200

Lift speed,laden/unladen

mm/s

25

25

Lowering speed,laden/unladen

mm/s

Manual control
