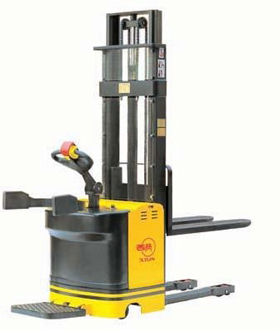

Model

CDD10M/CDD15M/CDD20M

Capacity

Q(kg)

1000/1500/2000

Load centre distance

c(mm)

500

Load distance,centre of drive axle to fork

x(mm)

880

Wheelbase

y(mm)

1400

Service weight (with battery)

kg

880/940/950

Tread,front

b10(mm)

626

Tread,rear

b11(mm)

410

Height,mast lowered

h1(mm)

2087/1837/2087

Max. lift height

h3(mm)

1600/2500/3000

Height,mast extended

h4(mm)

2087/3087/3587

Lowered fork height

h13(mm)

90

Overall length

l1(mm)

1955

Overall width

b1/b2(mm)

780

Fork dimensions

s/e/l(mm)

60/170/1070（1150）

Distance between fork-arms

b5(mm)

580

Ground clearance,centre of wheelbase

m2(mm)

21

Aisle width for pallets 1000x1200 crossways

Ast(mm)

2551

Aisle width for pallets 800x1200 lengthways

Ast(mm)

2493

Turning radius

Wa(mm)

1730

Travel speed,laden/unladen

Km/h

4/5

Lift speed,laden/unladen

m/s

0.08/0.1

Lowering speed,laden/unladen

m/s

0.15/0.12

Gradeability,laden/unladen

%

6/10

Drive motor rating S2 60 min

kW

0.75/0.75/0.9

Lift motor rating at S3 15%

kW

2.2/2.2/3.0

Battery voltage,nominal capacity K5

V/Ah

200/240/240

Battery weight

kg

200

Battery dimensions l/w/h

mm

650x249x500
